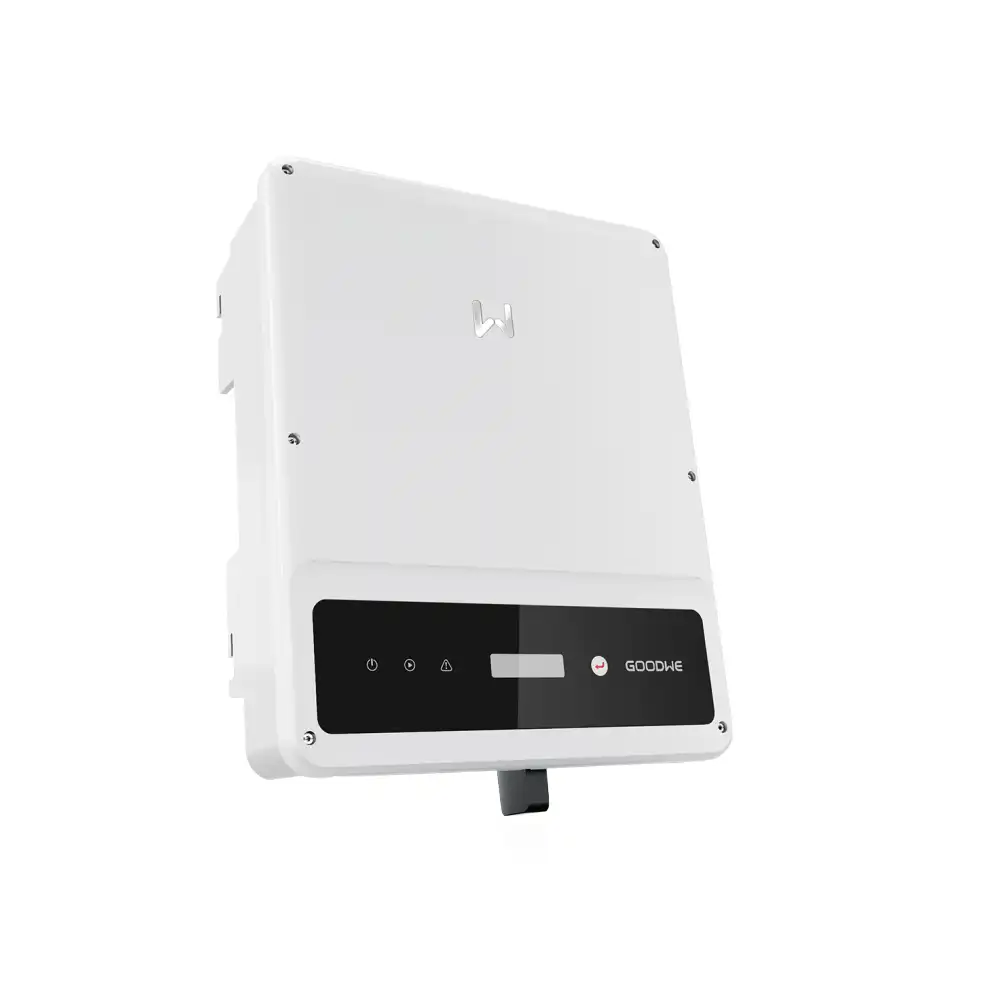

SDT G2 Series 4-15 kW | Three phase | 2 MPPTs

The SDT Series is one of the best options available on the residential & commercial segments thanks to its technical strengths that make it one of the most efficient in the market. For enhanced safety, this inverter is able to incorporate AFCI. Its high efficiency (98.3%) and its enhanced oversizing & overloading capabilities represent an outstanding improvement in the industry. Moreover, its plug-in AC connector make operation & maintenance easier.


  • Up to 98.3% max. efficiency
  • 150% DC input oversizing & 110% AC output overloading
  • Arc-fault circuit interrupter optional
  • Easy installation and O&M

Arc-Fault Circuit Interrupter Optional

Safety First. With AFCI, the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously. It does not only deliver efficiency, reliability, but security as well.

High Power Generation, Optimal Consumption

2nd generation of SDT series is downsized by more than 150%. However, being compatible with bifacial modules, the competency of this half size successor is considerably improved. With 150% DC input oversizing, 110% AC output overloading capability, it drives your inverter to its full capacity by adding extra reflections from the backside of bifacial panels, to increase your power output under low solar radiation conditions.

Data sheet

Max. Input Voltage(v): 1100 1100
Max. Input Current per MPPT(A) 12.5 12.5
Number of MPP trackers/Number of Strings per MPPT: 2/1 2/1
Weight(kg): 16.0 15.0
Nominal Output Voltage(V): 400,3L/N/PE 400,3L/N/PE
