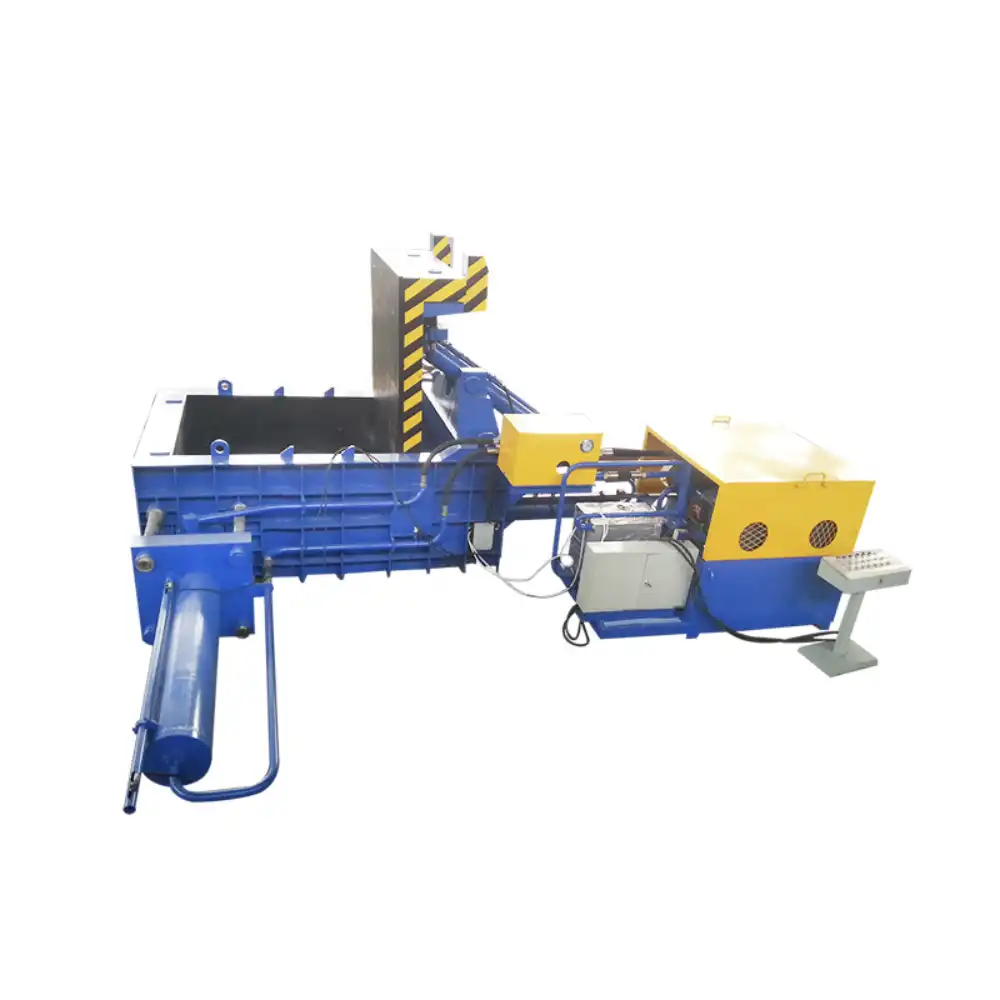

Hydraulic Metal baler

HC81 series side push metal baler features

It can extrude every kinds of scrap metal, steel shaving, waste copper and waste aluminum into qualified charging such as square column, cylinder, octagon body and other sharps.
The hydraulic driving is adopted for the machine.
The manual or PLC automatic control operations.
Installation does not need the foundation screw.
Can choose diesel engine drive or motor drive.
Three out-bag ways:turn out, side push, front push.
The chamber box size and bale size can according to the customer request.
Voltage/frequency can according to customer requirement.
Can add two sides of knives and teeth on the chamber box.
Can be equipped with cooler or heater.

Product parameters

Model	Nominal Force	Press Box Size	Bale Size	Capacity	Power
Model	(kn)	(LWH)(mm)	(W*H)(mm)	(kg/h)	(kw)
HC81T-1250A	1250	1200×700×600	(250-450)×300×300	1500-2000	18.5
HC81T-1600A	1600	1600×1000×800	(400-600)×400×400	2000-3000	22
HC81T-1600B	1600	1600×1200×800	(400-650)×400×400	2000-3000	30
HC81T-2000A	2000	1600×1200×800	(400-700)×400×400	2500-4000	30/37
HC81T-2000B	2000	1800×1400×900	(400-700)×400×400	2500-4000	30/37
HC81T-2500A	2500	2000×1400×900	(400-700)×500×500	3500-5000	44/60
HC81T-2500B	2500	2000×1400×1200	(450-800)×600×600	3500-5000	60
HC81T-3150A	3150	2000×1400×1200	(450-700)×600×600	3500-5000	60
HC81T-3150B	3150	2600×1750×1200	(450-800)×650×650	4000-5000	90
HC81T-4000A	4000	2600×1750×1200	(500-1000)×650×650	5000-6500	90
HC81T-4000B	4000	3000×2000×1200	(600-1100)×600×700	6000-8500	110
HC81T-5000	5000	5000×2000×1200	(600-1100)×600×700	9000-11500	110

The Workflow
