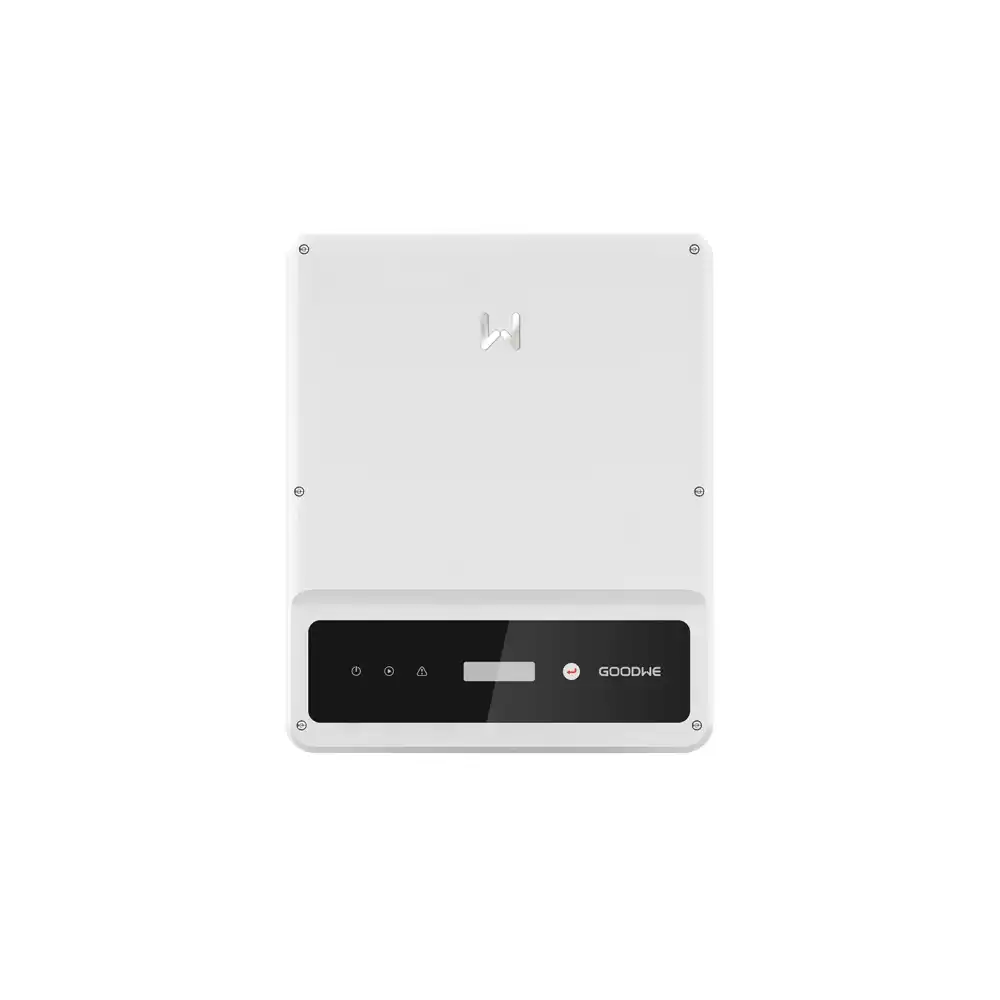

DNS Series 3-6 kW | Single phase | 2 MPPTs

DNS series is a perfect match for residential installations thanks to its compact size and light weight. Manufactured for durability and longevity under modern industrial standards, DNS series is IP65 rated so it can be mounted either inside or outside your home. With a low start-up voltage of only 80V and the widest MPPT voltage range of 80-550 V, these inverters can provide greater options for your household system. The DNS series is also extremely light, 30% lighter than other inverters.



  • 80V start-up voltage
  • Wide range of MPPT voltage
  • Fanless and noiseless
  • Small, light weight & easy to install
  • Export control
  • Flexible communication methods


Data Sheet

Model 3000T-DS 4200T-DS 6000T-DS
Max. Input Voltage(V): 600 600 600
Max. Input Current per MPPT(A): 13 13 13
Number of MPP trackers/Number of Strings per MPPT: 2/1 2/1 2/1
Weight(kg):  13.0  13.0  13.5
Nominal Output Voltage(V): 220/230 220/230 220/230


Export Control

Control the amount of power exported to the grid up to zero output, in compliance with your electricity utility’s requirements.

Easy Installation & Maintenance

With its compact size, simplified wiring, and weight 30% lighter than similar products, this inverter is extremely easy to install and maintain to save you from troubles during usage.

  • Various communication options
  • 30% Lighter than similar products
  • 20% Volume optimization
